Modux 2 & 4 Step

LuxR

Modux 2 & 4 Step

Enquire Now

Share this product

Product Information

The Modux Two & Four recessed Steplight and Pathlight models are designed to be mounted in the ground to illuminate paths, or wash walls and steps. They feature a glass optic that orients light 5º below the horizon and 10º above. These offer extremely low glare in most applications.

Beam Angles: -5°, +10°

Product Codes:

Modux 2: Modux 4:
128-M2SLRABK30 (Black) 128-M4SLRABK30 (Black)
128-M2SLRC30 (Copper) 128-M4SLRC30 (Copper)
128-M2SLRS30 (Stainless Steel) 128-M4SLRS30 (Stainless Steel)



Specifications

Designer: LuxR
Category: Outdoor Lighting
Material: Copper and Stainless Steel
IP Rating: 68
Light Source: M2: 2W | M4: 4W
Lumen Output: M2: 240 // M4: 360
Finishes: Copper/Stainless Steel
Mounting Type: Recessed/Wall
Dimensions: Ø 58 x 62 (H) mm

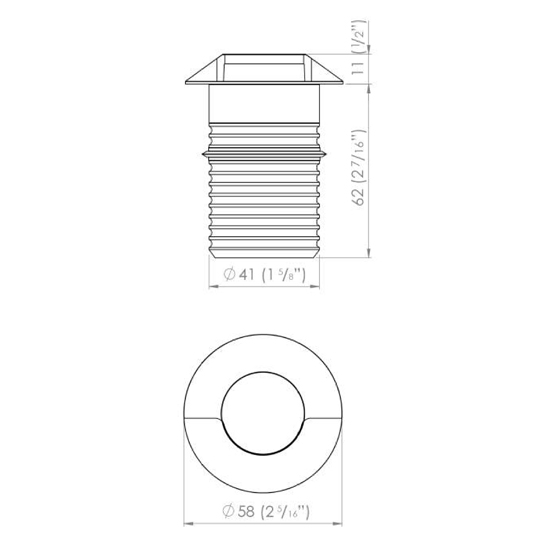

Line Drawing: View

Downloads

line drawing
